LED POWER FLARES,LED ROADFLARES MANUAL

1.   NON-RECHARGE LED POWERFLARES LED ROADFLARES



Using high-capacity CR123A Lithium battery as power, built-in IC chip control LED flash, this light has 9 user-selectable flash patterns:

ROTATE, double blink, single blink, alternative, SOS (Morse code) for rescue,, solid-on (low), solid-on (high),2LED flashlight and 4LED flashlight.
Easy to use!

Press the button located on the face of the light, directly above metal circle, to cycle through its nine flash/lighting functions.

Pressing the button in 3 seconds, the light is off, and press again, the light patterns is still on that pattern.

Introduction:

1. Warning Signal Visible up to Half a Mile
2. Compact and highly visible can replace bulky triangle fixtures
3. Contains a strong magnet for placement on vehicle, will not damage vehicle
4. Finish. Can also be placed safely on the ground or roadway
5. Casing is constructed of super high strength plastic with a flexible TPE plastic Shield. Unit is strong enough to withstand being driven over by a truck. Completely Waterproof, it will even float
6. Standard red LED is perfect for clear weather. In foggy conditions our yellow and blue LED's provide superior visibility
7. Keep in your vehicle at all times, battery can be stored up to 10 years.

* Product size: Dia. 10. 8cm, high 3. 5cm

* Product weight: less than 200g( with battery)

* LED: 16pcs

Material: TPE

Packing: Double blister orWhite box

Flash patterns and running time:

ROTATE, double blink, single blink, alternative, SOS (Morse code) for rescue, solid-on (low),solid-on (high) , 2LED flashlight and 4LED flashlight.


Pattern

Run Time

ROTATE

15 HOURS

DOUBLE BLINK

15 HOURS

SINGLE-BLINK

100 HOURS

ALTERNATE

15 HOURS

SOS(MORSE CODE) RESCUE

(SOS)

24 HOURS

SOLID-ON LOW

60HOURS

SOLID-ON HIGH

8 HOURS

2 LED FLASHLIGHT

15 HOURS

4 LED ILLUMINATE

10 HOURS


Battery performance can vary from factors such as temperatures, age of the battery, etc.

2.RECHARGE LED POWERFLARES LED ROADFLARES

1. Description:

ideals for roadside safety and traffic safety

Product size: Dia. 10cm, high 3. 5cm

Product weight: 230g

LED: 16pcs

With magnet: 1pcs 3000GS/PC

Products with our own patent


key specification

Size

10cm diameter x 3.5cm high

Weight

6.7oz. (190 g) with battery

Battery

1 CR-123 Lithium battery

Shelf-Life

10 Years

Buoyancy

Positive (floats); can attach weight

Op. & Storage Temps

Fahrenheit: -40/-40 to 212/248 deg F

Celsius: -40/-40 to 100/110 deg C

Emission Source

360 degree LED array: solid-state; no filament

LED Light Colors

Red, amber, blue, green, white, infrared (IR).Custom colors available.

Daylight & Night VisibilityRanges

Night: visible to 900M (3,000 ft) on road or water, 10 miles (16 km) from air

Day: visible to 300M (1,000 ft).

Housing Color & Material

Polymer

Water Depth Rating

80M submersion

HAZMAT

Hermetically sealed; intrinsically safe

Chemical

Contains no hazardous chemicals, Withstands exposure to petroleum-based fuels

Switch Type

Push Button

Approvals & Certifications:

Complies withU.S.DOT (FMCSA) 49 CFR E 392.25 & 393.95(g).

MUTCD Type A (flashing) and Type C (solid on).

Designed to meet MIL-SPEC/MIL-STD 810 for shock, vibration, and water-resistance.


2.Features:

1.Safe and eco-friendly

2.No spark, open flame, fumes or toxic chemicals

3.16 super bright red LEDs are visible up to ½ mile

4.Lighting covers 360 degree direction

5.9 flashing patterns including SOS Rescue (Morse Code). Using high-capacity battery CR123 as power, built-in IC chip control LED flash, this light has 9 user-selectable flash patterns.

6. Powerful magnet to attach to metal surfaces.The strong magnet attaches to construction or highway trucks, cars, signs, or other magnetic metal surface. The blinking caution light will alert drivers to road work, accidents, or other road hazards.

7. Shatterproof,crush proof, corrosion proof waterproof:

lHousing made of PC, TPE and TPR, it is even no problem allowed a car drive over it!.

lCompletely waterproof! It even floats! Perfect for boats and watercraft safety, also it is no problem working underwater 1/2mile.

8. Safe to use in many HAZMAT situations. Ideal for personal vehicles, commercial vehicles, RVs, boats,road hazards, signal for help, mark detours, underwater scuba or repair applications and emergency responders.

9.Standard red LED is perfect for clear weather. In foggy conditions the yellow and blue LED provide superior visibility. Also blue, green and white LED is workable!

10.Powered by a high capacity CR123 lithium battery with a storage life up to 10 years. Store temperature from-40C to + 60C.

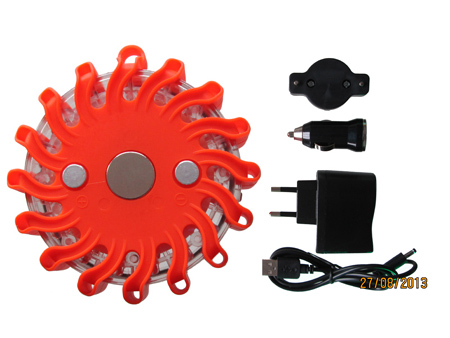

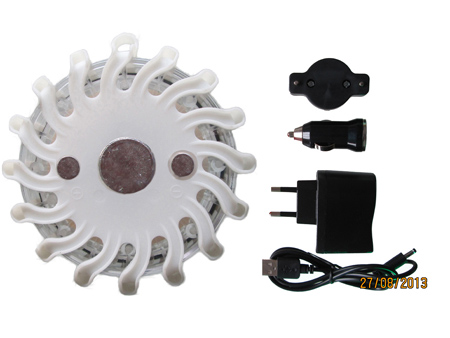

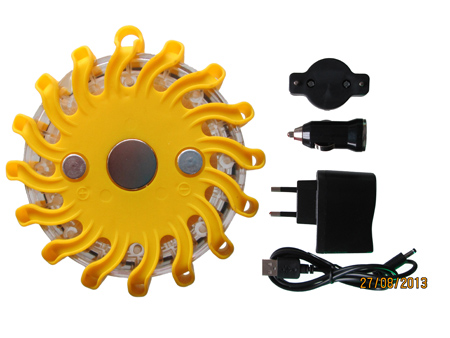

11. 120-240V wall charger and12-24V car charger

LI battery in recharge series capacity: 700mAH/3.7V

AC charger: input voltage 100-240V, output voltage: 5.5V, output electricity 450MA

Car charger: input voltage 12-24V, output voltage: 5.5V, output electricity 450MA

Charging time: battery can be fully charged within 2-3hours.

12.How to Charge it?

1. Put the light on ground, back side is upturned.
2.Take out the ellipse charger, put the charger onto the light as photo shows below, there has a + and mark on both of light and charger, face + to + and to -.

3. Connect the USB wire with the ellipse charger, now you can charger the light through the computer USB plug.
4.If you want to charger the light through AC, please connect the AC charger.
5.If you want to charger the light through CAR Plug, take out the AC charger and connect the CAR charger instead.

When it is fully charging, the light on ellipse charger is GREEN, and when it is full charger, the light on ellipse will turn RED.

13.Flash Patterns and Running Time:


Pattern

Run Time

ROTATE

9 HOURS

QUAD-FLASH

9 HOURS

SINGLE-BLINK

60 HOURS

ALTERNATE

9 HOURS

SOS(MORSE CODE) RESCUE

(SOS)

14 HOURS

SOLID-ON HIGH

5 HOURS

SOLID-ON LOW

35 HOURS

2 LED FLASHLIGHT

9 HOURS

4 LED ILLUMINATE

6 HOURS
