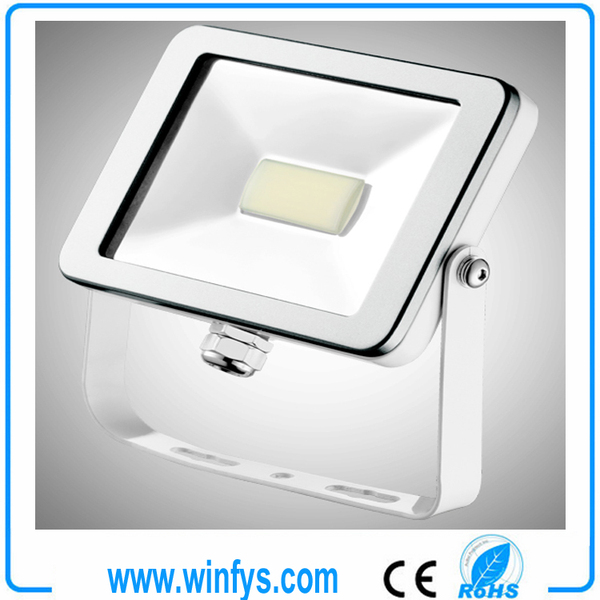

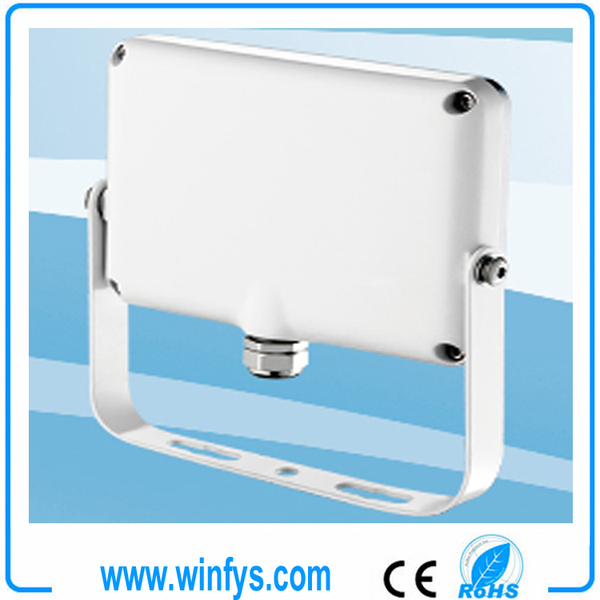

IP65 IP44 10W 20W 30W 50W Ultra Thin Led Flood Light
This Ultra Thin Led Flood Light is made from ultra-bright highest level Epistar LED chips with proprietary encapsulation technology, realizing excellent luminance, low brightness decline.It is with scientifically-designed heat dissipater with much better cooling effect, great energy-saving effect, save energy by over 80%, lamp surface treated with anodization, corrosion-resistant, artistic appearance and high Lumens, high Color rendering index, stable performance.The Ultra Thin Led Flood Light is perfect for retail stores, wholesale warehouses, grocery chains,court,stadium lighting, malls and auto showrooms.
1.Ultra Thin Led Flood Light Features
1.Input Voltage(V): AC100-AC180 or AC180-AC300 50Hz, SMD2835
2.Color Temperature: 3000-6500K
3.IP65 waterproof rating

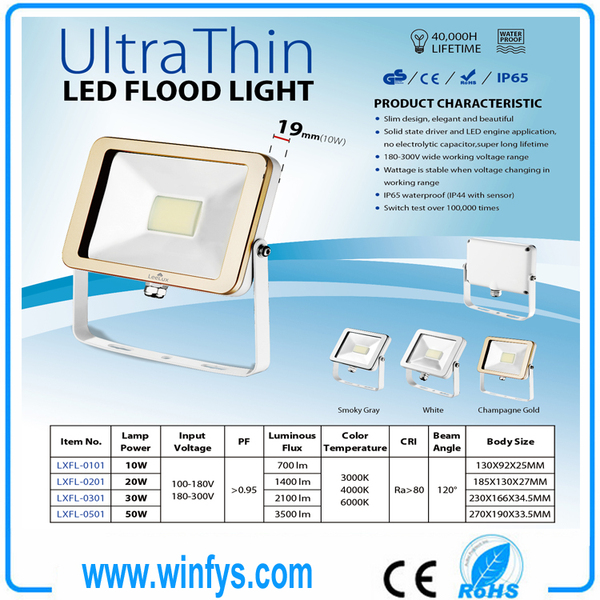

4.Ultra Thin Led Flood Light specification
Power
| Input Voltage | PF | Lumen | Color Temperature | CRI | Beam Angle | Body Size | Weight |
| 10W | 100-180V
180-300V | >0.95 | 700lm | 3000K-6000K | Ra>80 | 120º | 130X92X25mm | 350g |
| 20W | 100-180V
180-300V | >0.95 | 1400lm | 3000K-6000K | Ra>80 | 120º | 185X130X27mm | 470g |
| 30W | 100-180V
180-300V | >0.95 | 2100lm | 3000K-6000K | Ra>80 | 120º | 230X166X34.5mm | 750g |
| 50W | 100-180V
180-300V | >0.95 | 3500lm | 3000K-6000K | Ra>80 | 120º | 270X190X33.5mm | 930g |
5.Die-cast Aluminium Body
6.CRA: Ra>80
7.Beam Angle:120°
8.Tempered Glass Cover
9.Chip:Epistar
10.Linear high pressure driver: make power stable from 230v to 300v
11.Power factor>0.95

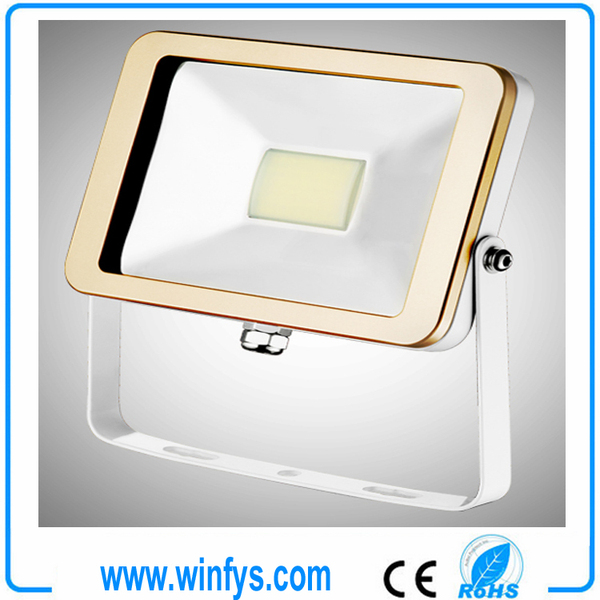

12.Frame optional: Gray, Gold, Black, White
13.Working Temperature(℃): -60
14.Working lifetime:30000hrs
2.Ultra Thin Led Flood Light Advantages
1. The unique heat sink technology greatly increases the heat sink efficiency of the lamps.
2. Using high quality LED chip with high lumen output, less light decay, pure color temperature
and no fringe image.
3. Ultra slim design and lightweighted
4. Easy installation, wide angle adjustable.
5. Made of pure die casting aluminum.
6. No glaring, no flicker.
3.Ultra Thin Led Flood Light Application
Ultra Thin Led Flood Light is Widely used in home illumination and decoration, office area, shopping malls, hotels, hospitals,exhibition halls, coffee bars. factories, school, display windows etc.
