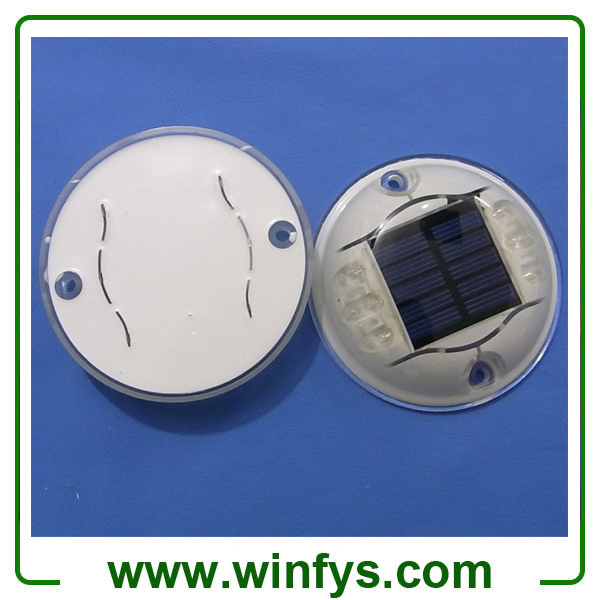

Led Solar Road Marker Solar Road Stud IP68 Round Solar Pavement Markers

The Solar Road Marker is designed to help control traffic while encouraging safer driving conditions

and provide superior road/path day and night visibility in adverse weather conditions,widely used on roads, highway, tunnel, parking pots, gardens, squares and other public places.

1. Specification

1.Mono-crystalline silicon solar panel 2.5V/120MA

2.NI-MH rechargeable battery 1.2V/800MAH

3.Charging:8 hours fully charged

4.Max Load Capacity>10 tons

5.Ligh source:φ5 LED( 3+3 leds)

6.Mode:Flash (2Hz±20%) 13 days or steady(constant) 3 days

7.Activate Condition:<500Lux

8.View Distance:>500m

9.Service Life>3 years

10.Working Temperature:-20℃～+70℃

11.Body size:102*46mmm；

12.Inner Box Size:122*125*50MM(1pc/box), 700g(1pc)

13.Carton size:640*260*265MM (45pcs), 37kgs

14. Install: double fix the stud with adhesive and screw

make sure it will not loose under long term pressure

2. Application

Solar road marker is widely used for Lane delineation/Lane marking and guidance/Lane merging and on/off ramps/Accident prevention at black spots/Hazardous road layouts/Cycle path delineation/Cycle route way finding/Architectural .

3. Features

1.The Solar road marker is solar powered, eco-friend and energy-saving and easy to install.

2. Don’t need external power source and external lines. It will be automatically powered on at night.

3.Additional wearresisting layer is increased on the upper surface, which prevents the surface from being wear away, and improve the efficiency of solar energy transfer.

4.Intelligent control IC, imported precision potentiometer, heat-resistant highvolume rechargeable batteries

are applied in the road stud, which ensure its service life and excellent performance.

5.LED indicators are mounted in one side or double side according to customers’ requirement.
