ALUMINUM SOLAR LED PAVEMENT MARKERS SOLAR ROAD MARKERS SOLAR PAVEMENT MARKERS

Solar Road Stud (Solar Road Marker, Solar Pavement Marker, Solar Cat Eye) is a safety device to

provide great visibility for drivers at night and during bad weather conditions and prevent fatal accidents and serious injuries caused by hidden and hard-to-see center lines. Flash model or constant model is optional.

1.Features

This Light control Aluminum Solar Led Road Stud can work automatically at night according to the environment brightness. Microprism design can reflect automaticallyPC shell anti-impact, strong

and durable.IP68 waterproof design, it can still work normally in the rain.

1.The aluminum road stud is produced by mould in one punch, no need to assemble, which greatly improve its load capability.

Solar battery, electronic component and LED indicators are sealed in road stud with special technique, the road stud

is strictly water proof, which can be used on ponding road for the long run.

2. Upside of the road stud is designed with embossed parallel stiffeners which strengthen the stud and protect

solar panel from being crushed by the wheels.

3.Additional wearresisting layer is increased on the upper surface, which prevents the surface from being wear away, and improve the efficiency of solar energy transfer.

4.Intelligent control IC, imported precision potentiometer, heat-resistant highvolume rechargeable batteries

are applied in the road stud, which ensure its service life and excellent performance.

5.LED indicators are mounted in one side or double side according to customers’ requirement.

6.The road stud is designed with handgrips and screw holes on both sides, which can be installed firmly on the road.

7.Easy to install.

8.The road stud is applicable to pavement, roadside edge, kerb stone, port and so on.

Solar Road Stud, Solar Pavement  Marker, Solar  Road  Marker, Solar Lane Divider, Solar Road Sign, Solar Cat Eyes, Solar Road  Reflector

2.Specification

1.solar panel 2.5V/120MA

2.NI-MH rechargeable battery 1.2V/800MAH

3.Flashing:13 days after fully charged

4.Max Load Capacity>10 tons

5.Ligh source:φ5 LED

6.Mode:Flash (2Hz±20%) or steady(constant)

7.Activate Condition:<500Lux

8.View Distance:>500m

9.Service Life>3 years

10.Working Temperature:-20℃～+70℃

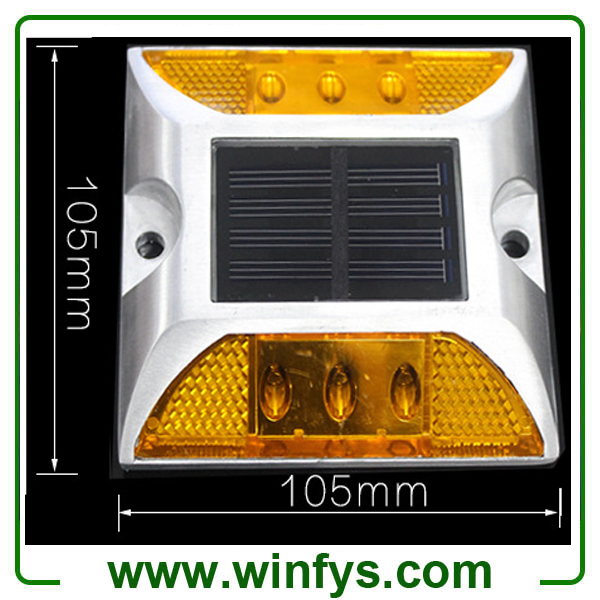

11.Body size:105*105*23mm；

12.Inner Box Size:120*120*50MM(2pc/box), 660g(2pcs)

13.Carton size:400*275*2800MM (60pcs), 21kgs

14.Install: double fix the stud with adhesive and screw to make sure it will not loose under long term pressure

3.Application

• High dangerous fields such as oil storeroom and chemical

• Bridge, high way, railway

• Transportation and trucks

• Hydrology, water conservancy, reservoir

• Fishery, breed aquatics, shipping and boating ,docks

• Building site, tower crane, some operation equipments in the field

• Large-scale entertainment, establishment, entertainment location and large- scale manual scene

• Building appearance, decorative and advertisement
